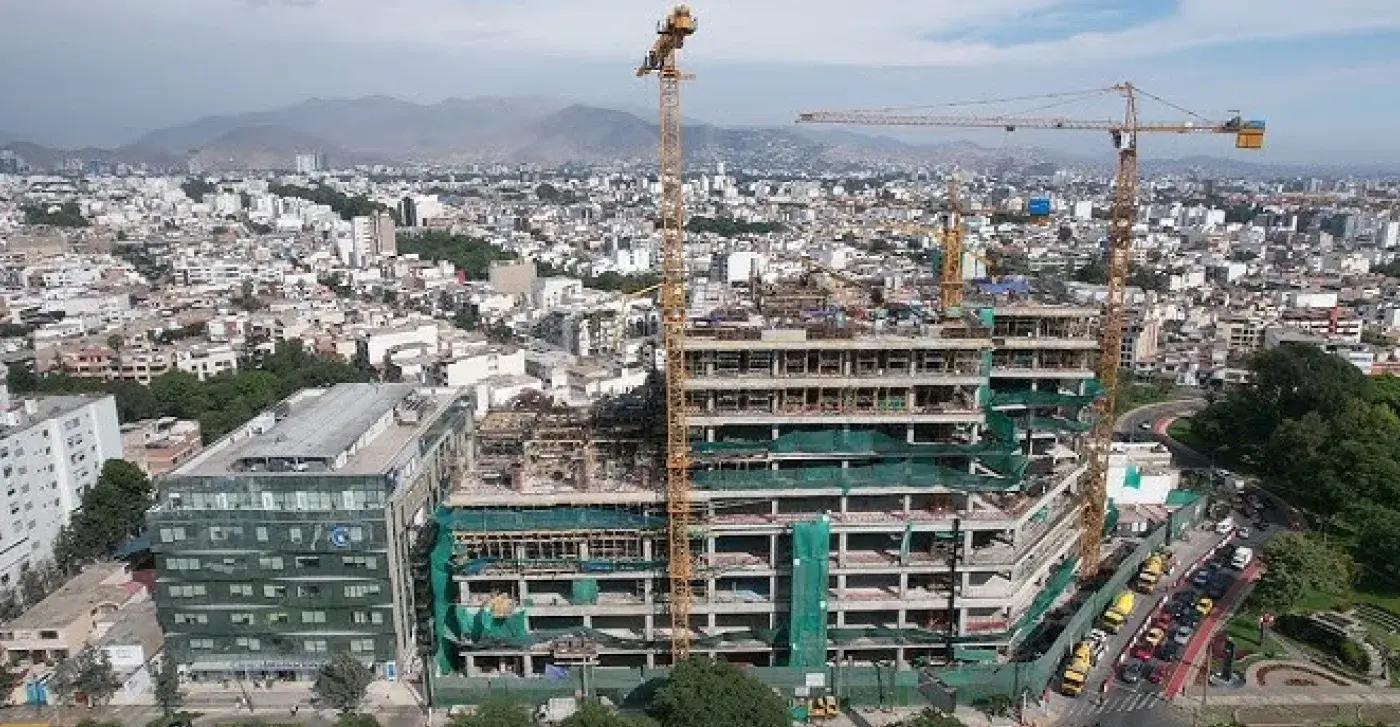

Clínica Internacional VitalCore CMG

MG Indusol is responsible for the design, manufacturing, and commissioning of the MGCS panel, serving as the Master Generation Control System for Clínica Internacional. The switchboard, built within a self-supporting Rittal IP55 enclosure certified for Seismic Zone 4, integrates a Red Lion controller and a 21” HMI, and is specifically designed to automatically manage generator set operations in the event of a total utility power outage (blackout).

The system controls the startup sequence, synchronization, and circuit breaker closing operations while continuously monitoring critical parameters from power analyzers, phase control relays, and UPS system statuses (including fault signals, low battery, and bypass conditions). In addition, it supports automatic, manual, and no-load testing modes, ensuring uninterrupted electrical power continuity under all operating conditions.

The project scope also includes fuel system monitoring through two level sensors (sub-base tank and underground main fuel tank), as well as the development of detailed engineering, Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), and control wiring integration between the MGCS and associated switchboards.

Furthermore, MG Indusol is responsible for integrating the system with the project’s Building Management System (BMS) through the BACnet communication protocol, in addition to delivering final documentation and technical training for the client’s personnel, ensuring a reliable, automated, and fully compliant system aligned with the project’s operational requirements.
